Pimtaş Kablin Ekleme Parçaları

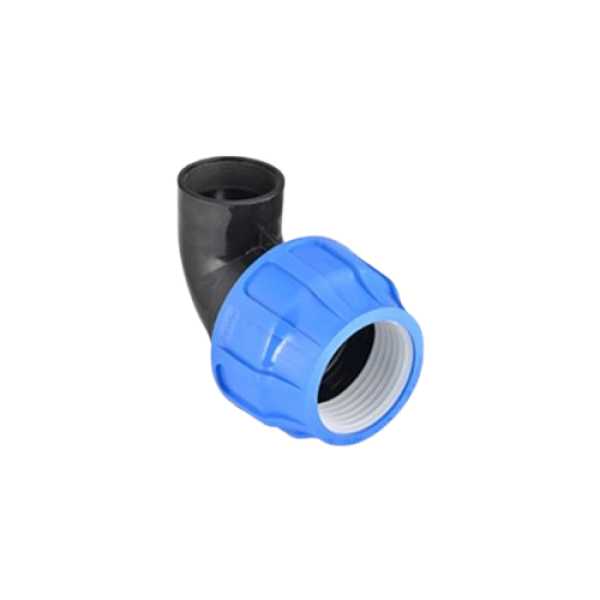

Pimtaş Kaplin Dişi Dirsek – Mavi Seri
| ÇAP/DIA | (PN) | KOD/CODE | A / Z (MM) | L / L1 (MM) | B (MM) |
| 20×1/2” | PN16 | EX70002400 | 48,5 / 11 | 59,5 / 25 | 14 |
| 20×3/4” | PN16 | EX70002401 | 48,5 / 11 | 59,5 / 25 | 15 |
| 25×1/2” | PN16 | EX70002402 | 53 /13,5 | 66,5 / 27,5 | 14 |
| 25×3/4” | PN16 | EX70002403 | 53 /13,5 | 66,5 / 28,5 | 15 |
| 25×1” | PN16 | EX70002404 | 53 /13,5 | 66,5 / 30,5 | 17 |
| 32×3/4” | PN16 | EX70002405 | 57 / 17 | 74 / 32 | 15 |
| 32×1” | PN16 | EX70002406 | 57 / 17 | 74 / 34 | 17 |
| 32×1 1/4” | PN16 | EX70002407 | 57 / 17 | 74 / 37 | 20 |
| 40×1” | PN16 | EX70002408 | 73,5 /21 | 94,5 / 38 | 17 |
| 40×1 1/4” | PN16 | EX70002409 | 73,5 /21 | 94,5 / 41 | 20 |
| 40×1 1/2” | PN16 | EX70002410 | 73,5 /21 | 94,5 / 41 | 20 |
| 50×1 1/4” | PN16 | EX70002411 | 84,5 / 26 | 110,5 / 46 | 20 |
| 50×1 1/2” | PN16 | EX70002412 | 84,5 / 26 | 110,5 / 46 | 20 |
| 63×1 1/2” | PN16 | EX70002413 | 92,5 / 32,5 | 125 / 52,5 | 20 |
| 63×2” | PN16 | EX70002414 | 92,5 / 32,5 | 125 / 56,5 | 24 |
| 75×2” | PN16 | EX70002415 | 127 / 38,5 | 165,5 / 62,5 | 24 |
| 75×2 1/2” | PN16 | EX70002416 | 127 / 38,5 | 165,5 / 66,5 | 278 |
| 90×2 1/2” | PN16 | EX70002417 | 127 / 38,5 | 205 / 74 | 28 |
| 90×3” | PN16 | EX70002418 | 159 / 46 | 205 / 76 | 30 |
| 110×3” | PN16 | EX70002419 | 185 / 56 | 241 / 86 | 30 |
| 110×4” | PN16 | EX70002420 | 185 / 56 | 241 / 92 | 36 |
